Differential Pressure Transmitter/Indicator
DPI38I-R
“DP1381” is specially designed for Clean rooms to meet the requirement of Measurement, Display & Data logging of Relative Humidity, Temperature and Differential Pressure for meeting the Regulatory requirements in API’s & Formulations
Applications
Environmental Monitoring for Clean Rooms
Features
1/2/3 Channel Display with 0.8" Seven Segment Red LED Display
Wide range of Input Options for Remote Tx interface /Inbuilt Sensors
Programmable Set points for each parameter (HI/LO) for Visual and LED Announciation
User configurable (enable/disable) Inbuilt Buzzer to provide audible Process value violation
Option for Buzzer Acknowledgement and Snoozing
Process value violations display indication
Password protected calibration & other programming modes
Software Calibration & Ranging through soft touch tactile keypad
User configurable (enable/disable) Inbuilt Relay (1- NO, NC)
Relay Output with Programmable Acknowledgement and Snoozing
Opto Isolated RS-485 Communication to transfer the data for storage through Proprietary protocol or MODBUS protocol
MODBUS interface Max 31 Devices without Repeater
Programmable Baud Rate selection 9600/19200 / 38400
Optional 4-20mA O/P for single channel
Safe area applications with SS Faceplate, flush mount (Brick Wall /Modular Wall) and On Wall Mount for Clean Room Application
Clean Room compatible Concealed Enclosure (Depth 45 mm)

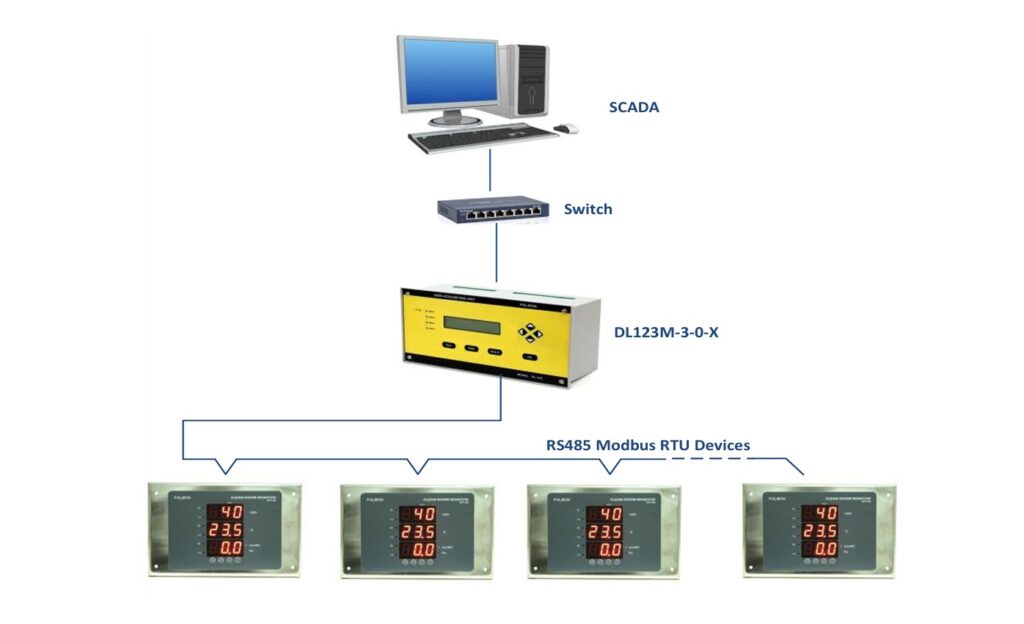

Network Architecture
